The Pythagoras Access System, make what you can.
The Pythagoras Access System, dream it, build it.

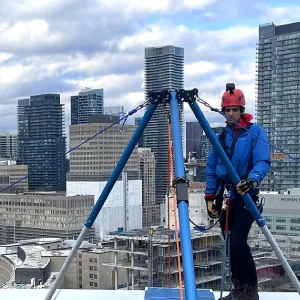

The M40 Pythagoras Access System is a CE certified tripod system, that can be changed into a
multitude of structures.
From an A-frame to a Gin Pole or a Quad-pod or Davit arm, there are many possibilities.
Made in Canada with Canadian Aluminum with clean energy and craftsmanship you expect.
What’s Included?
it isn’t a kit you can buy so its not included but more like this is what you need to build this system. So make this into System components but keep the letters small and not bold.
Same for Best for, small letter and not bold.
Why the Eyolf Pythagoras?
Have you seen the price? Have you seen what you can do with it?
If not you better check it out and see what you have been missing.
Modular Design
Interchangeable components allow you to build multiple configurations from a single kit.
Fast Deployment
Where needed tool free assembly with safety pin connections gets you operational in minutes.
Scalability
Start with the basics and add specialized modules as your operational needs grow.
Training
Training is available through partnered companies specialized in AHD.
The Pythagoras Configuration Sheets
M40 FOUR
QUADPOD CONFIGURATION
What’s Included
- 4x Telescopic Legs
- 1x Quad Head Unit
- Stabilization Straps
Best For
Confined space entry over manholes, general lifting stability.
M40 FIVE
A-FRAME CONFIGURATION
What’s Included
- 2x A-Frame Legs
- 1x Beam Assembly
- Trolley System
Best For
Edge transition, rescue over parapets, directional loading.
M40 EIGHT
JACKPOST CONFIGURATION
What’s Included
- 1x Mast Column
- 1x Davit Arm
- Base Mount Adapter
Best For
Vertical lowering, facade access, tight clearance zones.
M40 ELEVEN
DAVIT ARM CONFIGURATION
What’s Included
- 2x Clamp Assemblies
- 1x Vertical Post
- Winch Mount Bracket
Best For
Structural column anchoring, temporary fixed points .
Tripod Gallery
Pythagoras Tripod
Pythagoras Blue
Pythagoras Black
Pythagoras Blue
Pythagoras Tripod
How to Choose?
Ask yourself these three questions to find the right starting point.
1. Work Location
Is your access point on open ground, near a structural edge, or within a confined interior space?
2. Load Direction
Do you need to lift vertically directly from the center, or do you need reach over an obstacle?
3. Mobility Requirements
Will the rig stay static once deployed, or do you need to move it while under load or between tasks?
Frequently Asked Questions
Can I upgrade from M40 FOUR to FIVE later?
Yes. Because the M40 system is modular, many components like legs and pins are shared. You only need to purchase the specific adapter parts for the new configuration.
What is the maximum load capacity?
Ratings depend on the configurations and which standards you need to follow. Generally, the
system is rated for one person under the CE certification and rescue loads under the NFPA
requirements.
Are spare parts available?
Absolutely. We stock all individual pins, feet, and head units, so you never have to replace an entire system due to a single lost or damaged part.
Is there a mobile base option?
Yes, we offer a wheeled base for the M40 FIVE QuadPod configuration for use on a smooth and level surface.
What experience level is required?
Anyone using the Pythagoras Access System should be competent through experience or training. We can provide task specific training through our certified partners.
